Display Oled 1.3 inch

By Boris Landoni on June 15, 2022

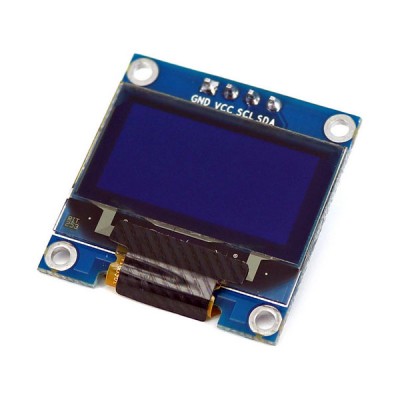

1.3″ Organic Light Emitting Diode (OLED) Display with good contrast, no backlighting required.
Based on the graphics controller SH1106, SPI and I²C interface, resolution 128×64 px, active display area size 28×13 mm, board size 41×38 mm.

Technical specifications

Driver Chip: SH1106
Interface: 3-wire SPI, 4-wire SPI, I2C

Go to Open-Electronics Store
