Water Tank Level Alarm and Pump Cutoff

By Marco Ventimiglia on September 20, 2022

The project stems from the need to be able to view the water level in a tank and to control a pump accordingly.

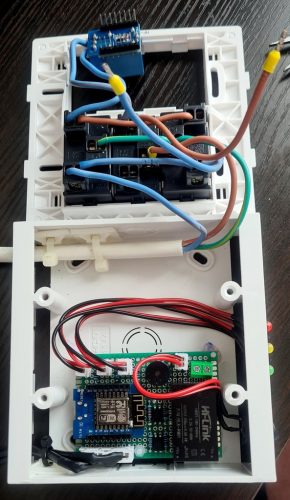

The device is based on an ESP8266 module which reads the water level through two special sensors and controls a pump through a relay module. Everything is powered by a power supply module to obtain 5V from the mains voltage.
